Vortec 4200 Rear Sump Wing-Style Oil Pan (Pre-order NOW!!!)

Vortec 4200 Rear Sump Wing-Style Oil Pan (Pre-order NOW!!!)

Regular price $850.00
Regular price Sale price $850.00
Sale Sold out
Oil drain plug location

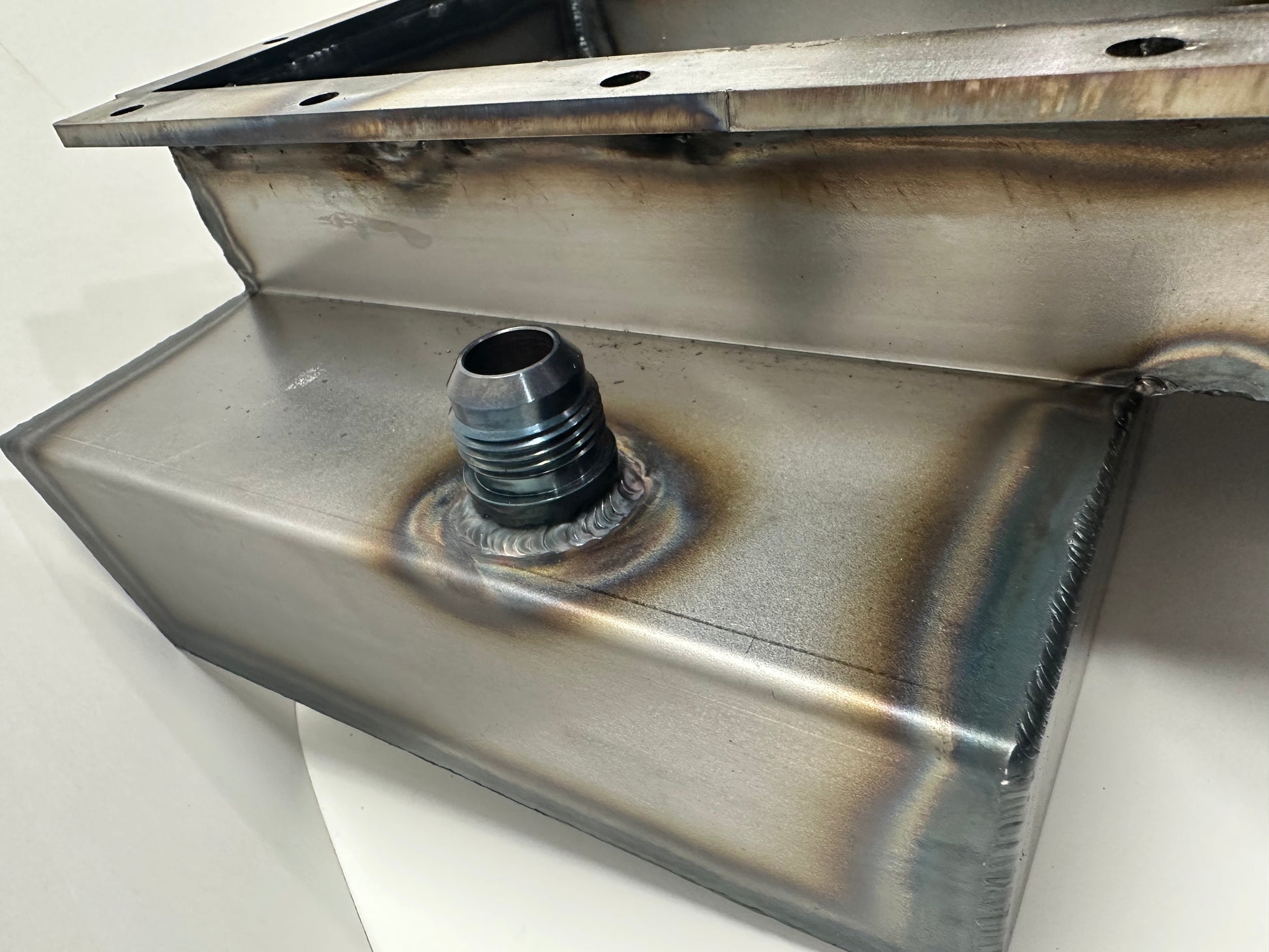

Oil Return drain Bung
Powder Coating

Low-profile. Baffled. Built to fit where others don’t.

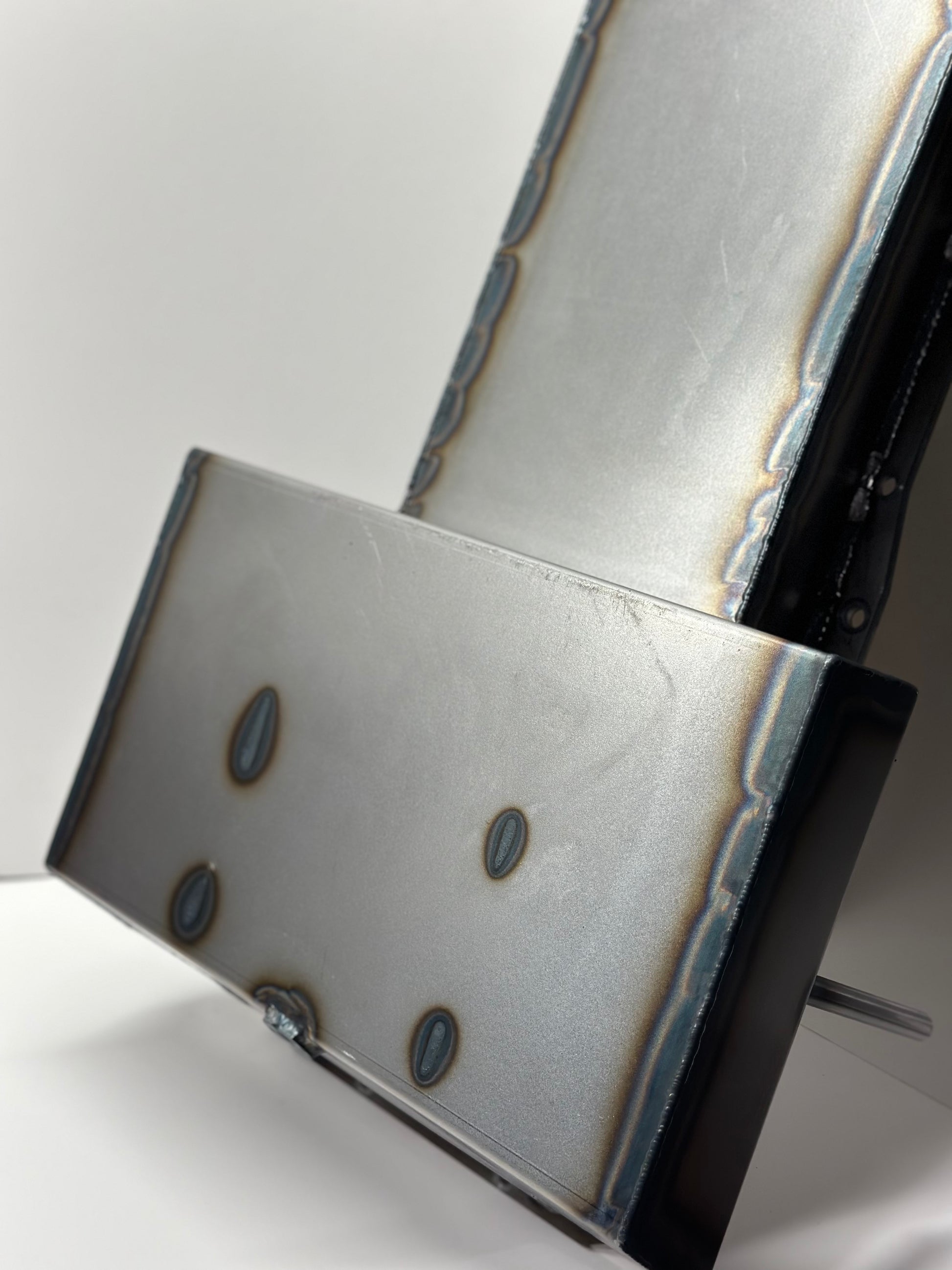

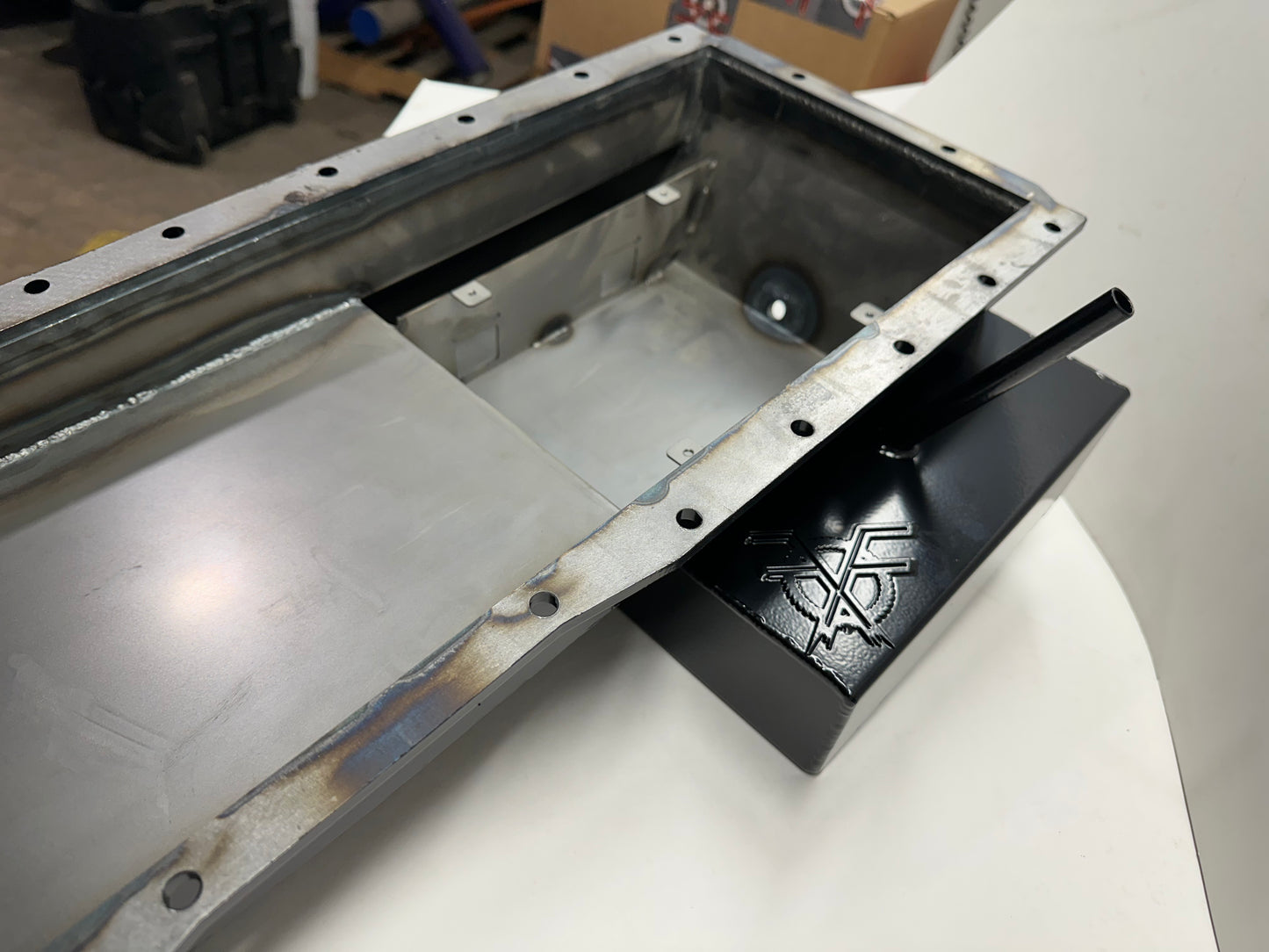

This hand-built, TIG-finished oil pan is designed for GM Vortec 4200 swaps that require maximum ground clearance without compromising oil capacity. Built and tested on a 2005 Nissan 350Z chassis, it’s perfect for custom applications where stock pans simply don’t fit. Despite its low profile, it still holds a full 7 quarts of oil, just like the factory GM pan.

Watch the fitment test video here

Watch us talk about the product here


⚙️ Craftsmanship Details

Each pan is precision-welded by a one-man shop in Lake Elmo, MN using:

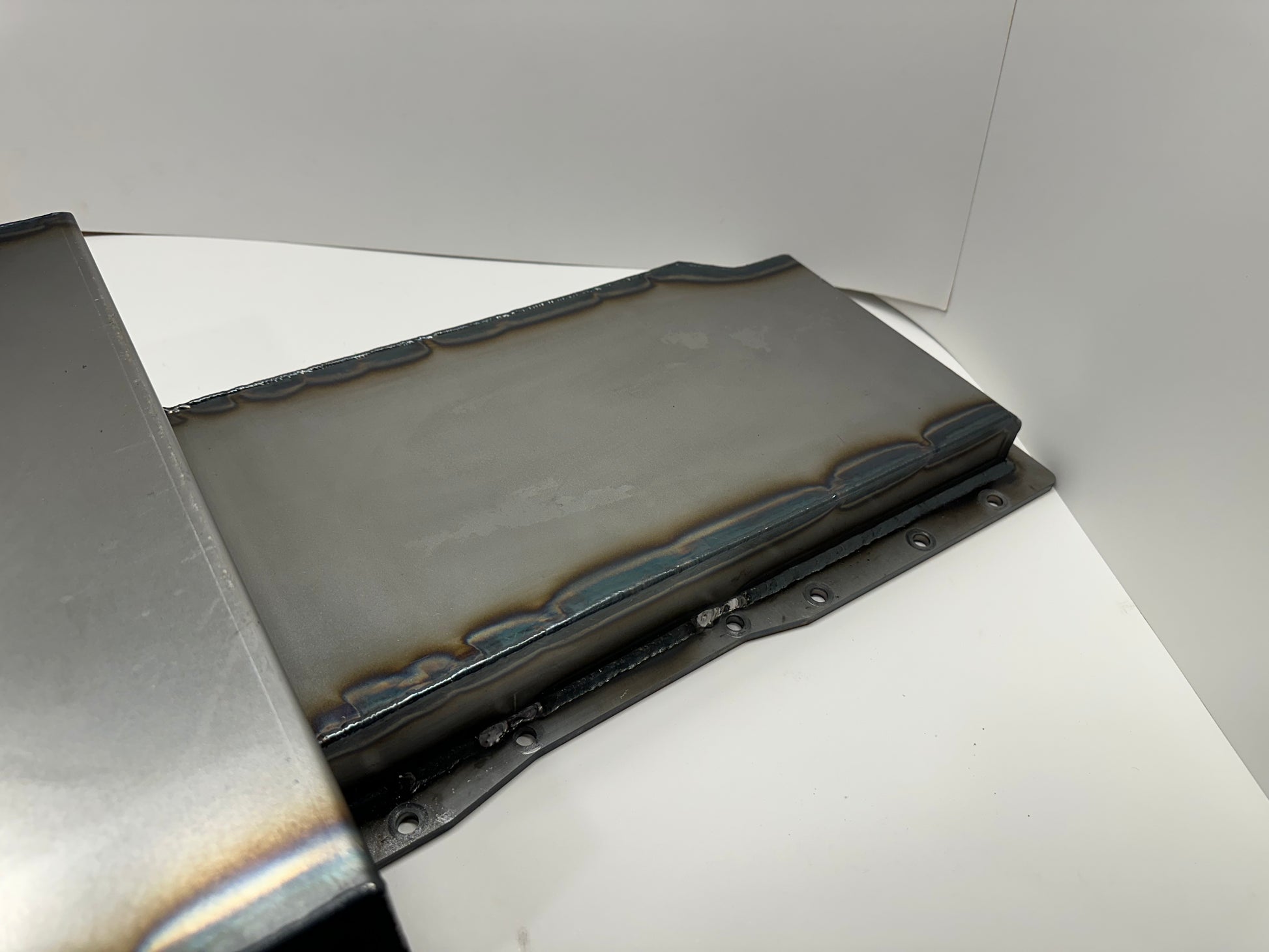

  • MIG-welded flange for maximum strength at the engine interface

  • TIG-welded pan body, baffling, dipstick tube, and return fittings

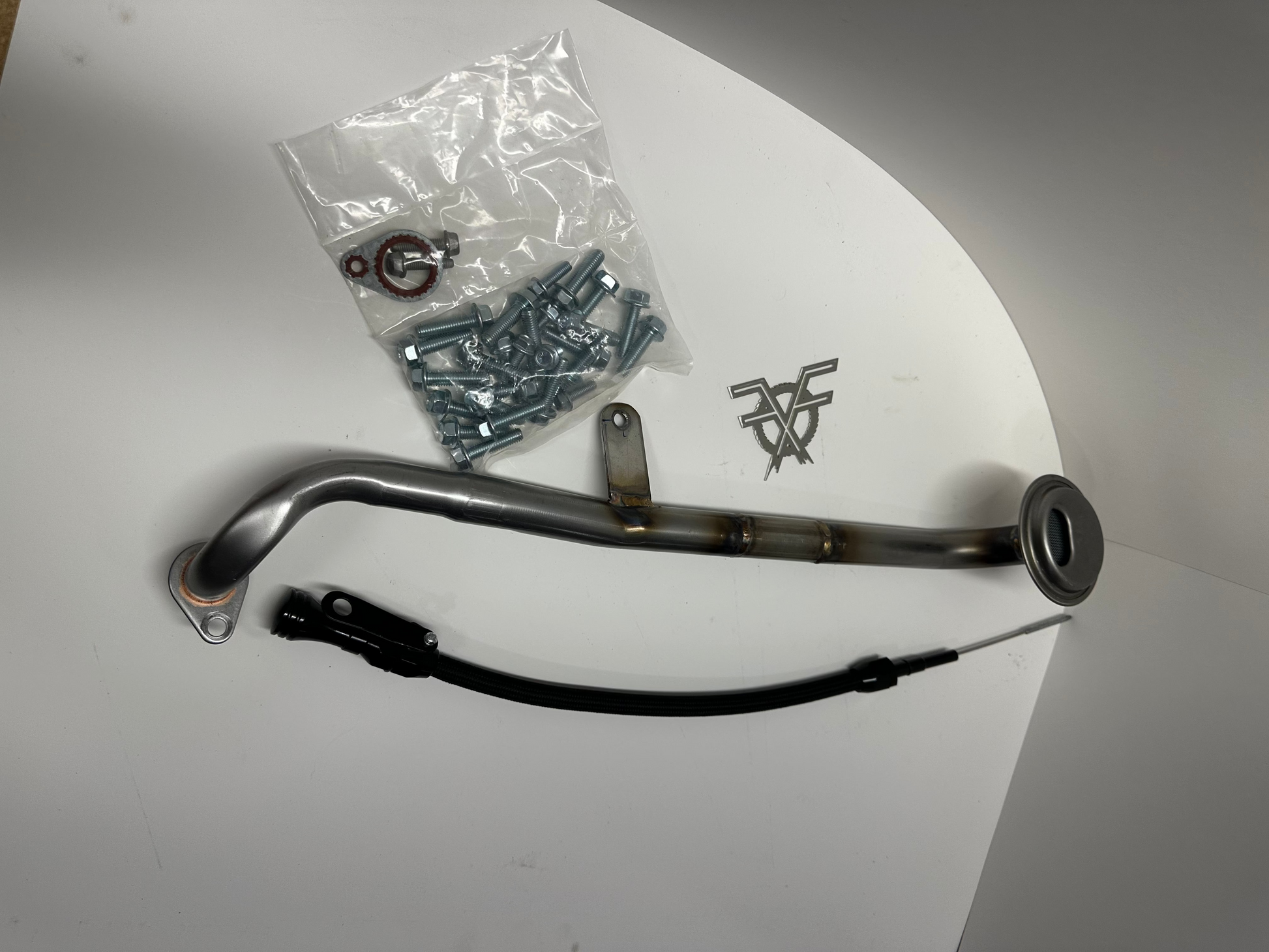

  • Custom rear sump pickup tube, modified in-house from a 5-cylinder pickup — extended and bracketed to bolt directly into the 4200 block

  • Ships with new hardware for mounting the pan and pickup


🛠️ Oil Drain Location Options (Included)

You choose your preferred drain configuration:

  • Default (recommended): Rear-center wall – best for ground clearance

  • Optional: Body-mounted – allows direct inspection of the pickup

🔧 Each pan includes a welded M12 x 1.75 drain bung in your chosen location, and comes with a black steel magnetic drain plug by Racetronix — helping to capture harmful particles before they reach your engine.


💡 Key Features

  • Built for GM Vortec 4200 Inline-6 (Atlas)

  • Fits tight swap applications, tested on 350Z chassis

  • Internal baffling system with:

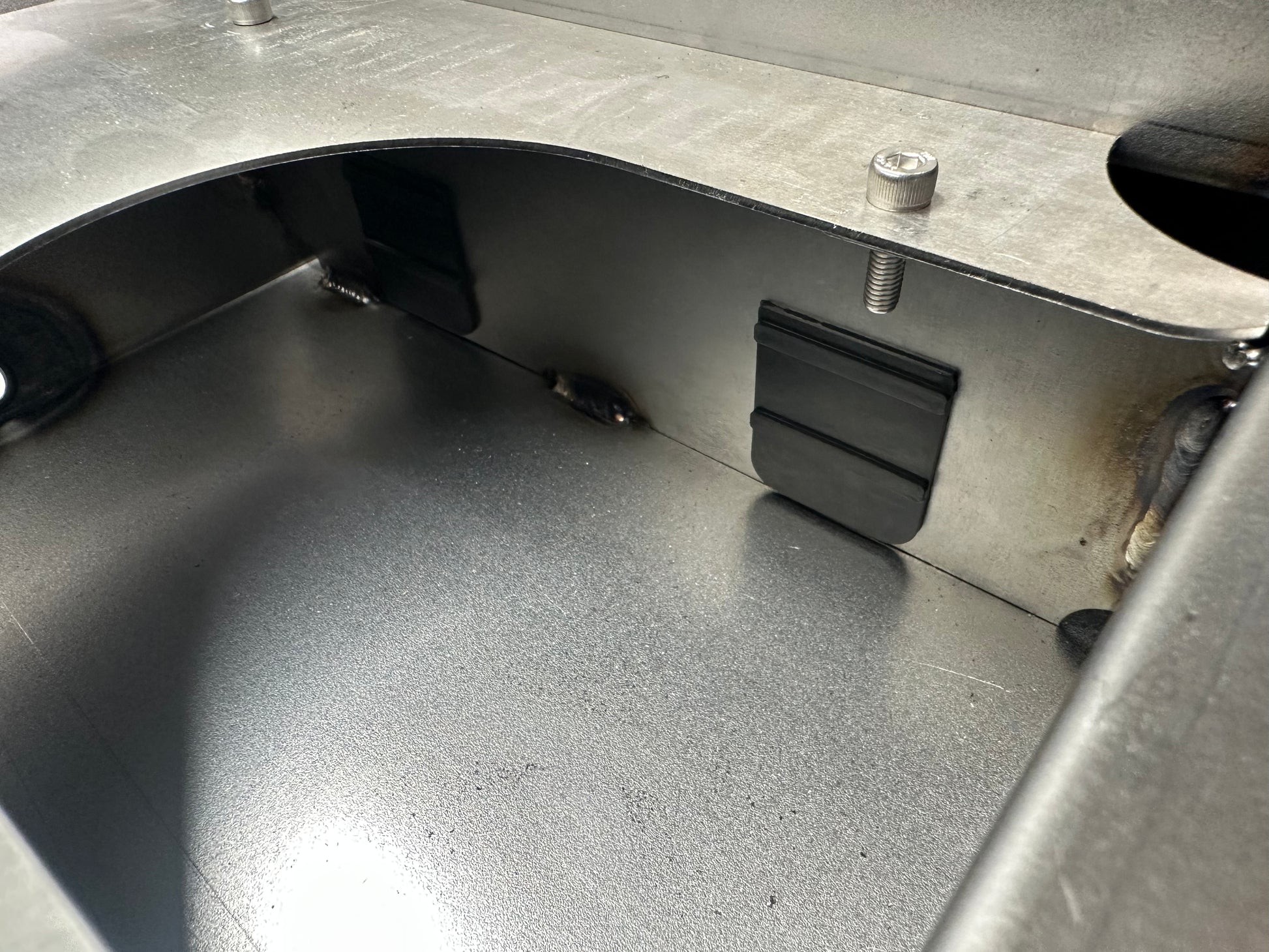

    • (4) one-way rubber door flaps on side baffles

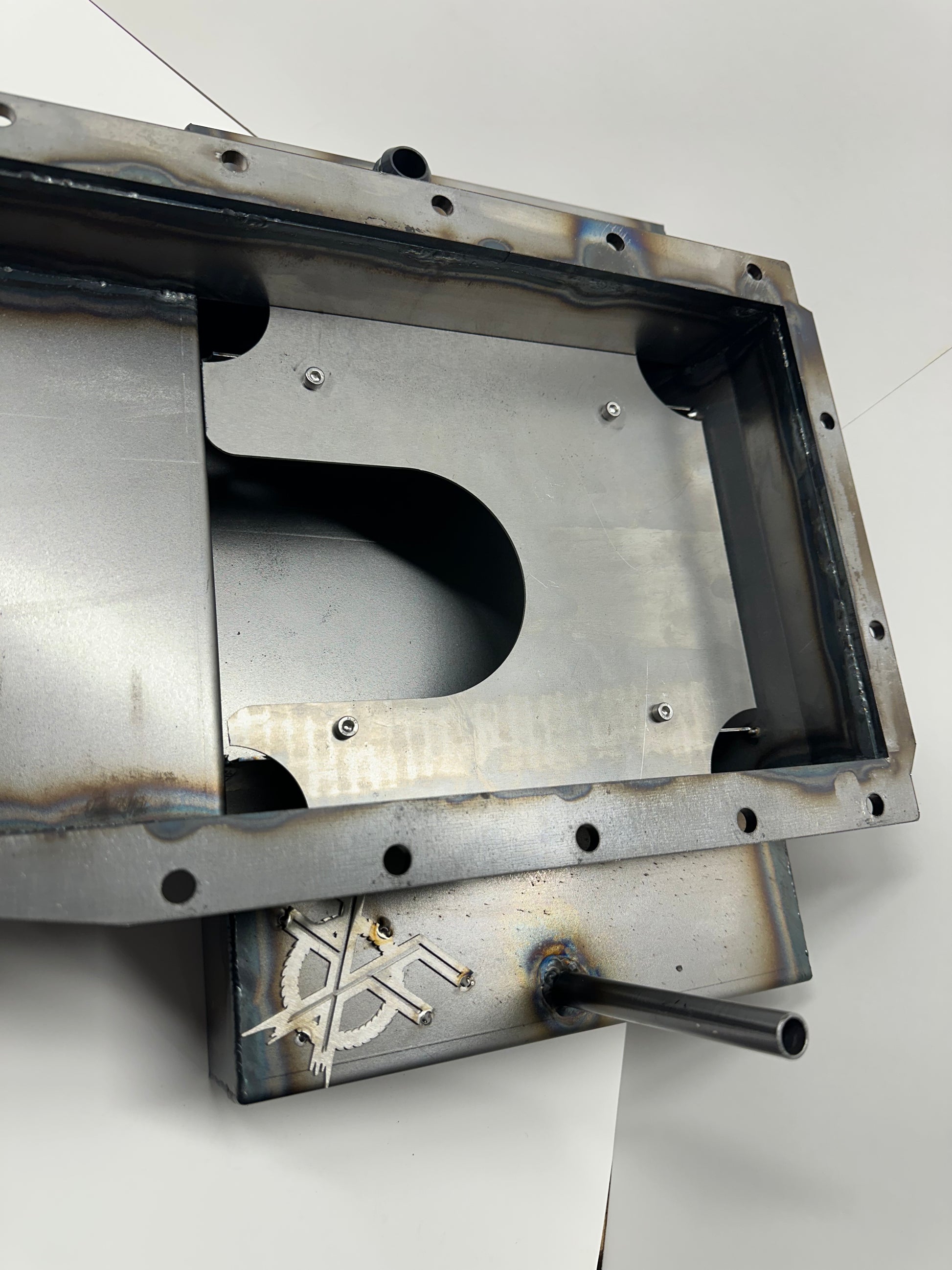

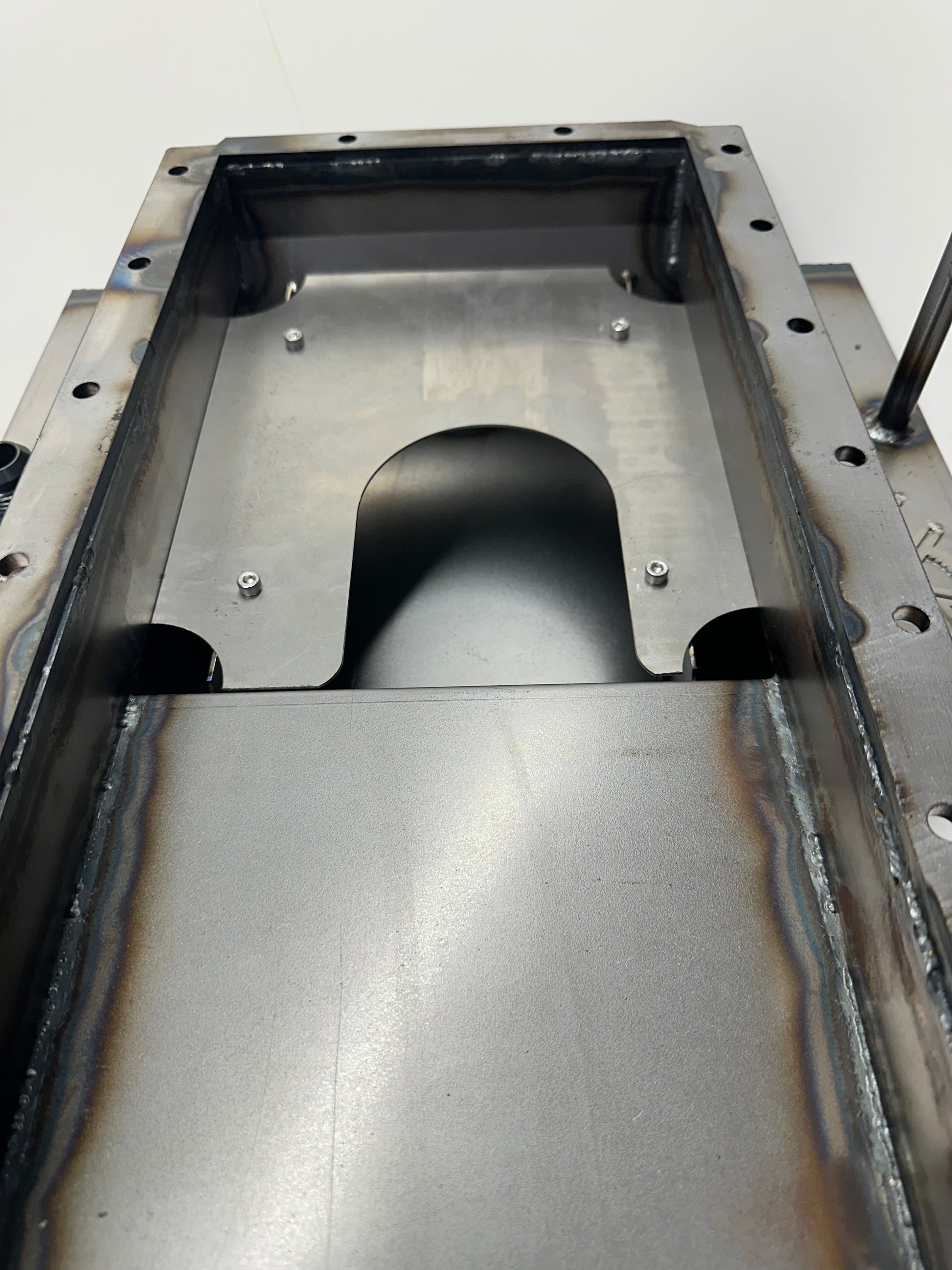

    • Bolt-in top baffle for oil control under load

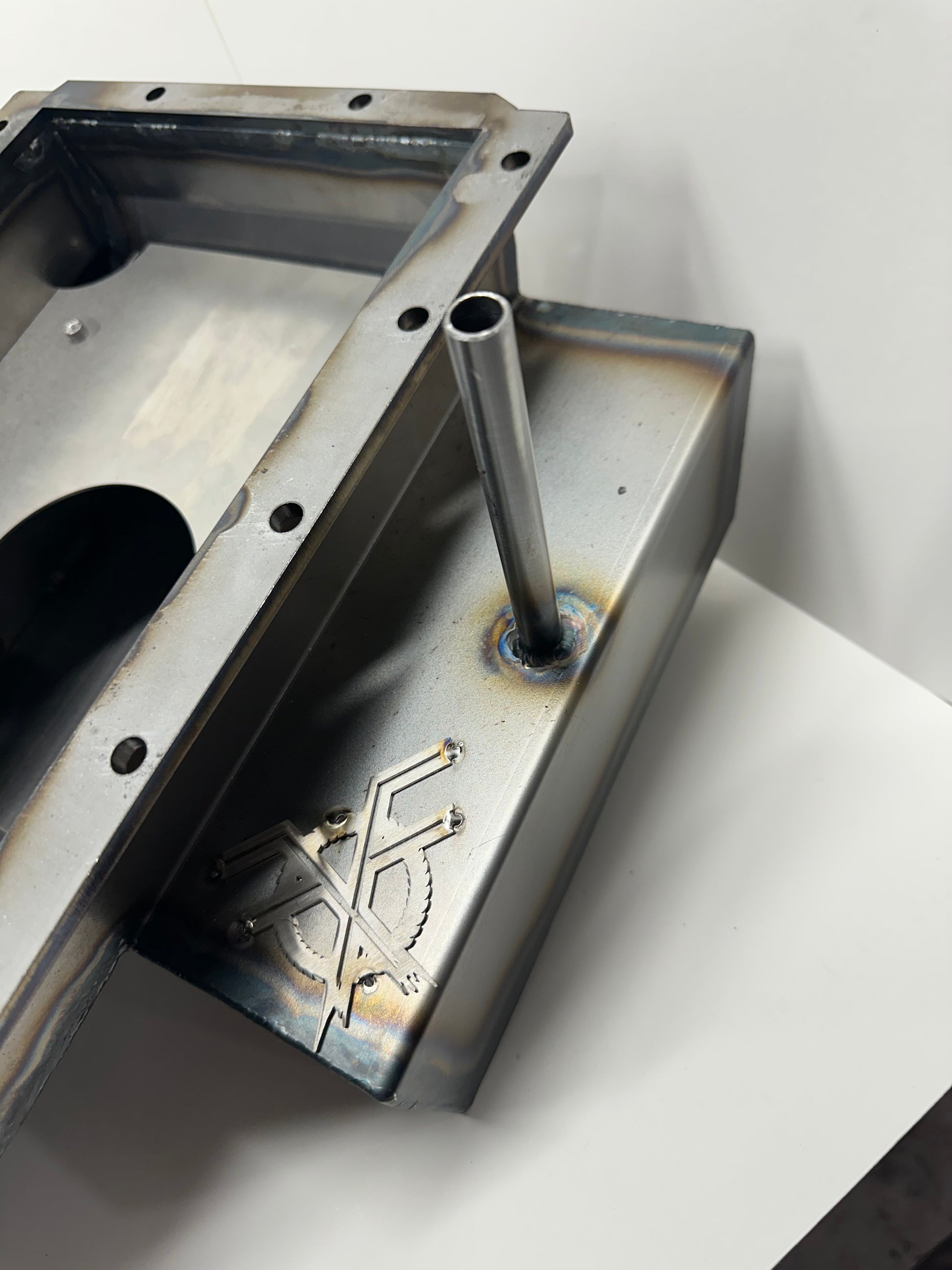

  • Welded dipstick tube + included flexible dipstick (mountable to engine or chassis)

  • Includes all mounting bolts

  • 7-quart capacity, same as OEM


📦 What’s Included

  • Fully welded oil pan

  • Internal baffling system

  • Flexible dipstick + welded dipstick tube

  • Rear sump pickup (modified and fitted)

  • New mounting bolts

  • M12 x 1.75 oil drain bung

  • Magnetic drain plug (Racetronix, black)


📅 Pre-Order Info

This is a small-batch, made-to-order part. Pre-orders help schedule production and secure your spot in the queue.


🔩 Built by Forever Fabrication – Lake Elmo, MN

Hand-built by a performance welders who’ve been in your shoes.
Every weld has a purpose. Every part earns its place.
